AlorairGarage HydroX H50A Copper Hydronic Heating Unit
$299.00
Model:Â H50A
Specs:Â 65 W | 110/120 V | 50,000 BTU
Welding-Compatible, Residential and Commercial Hot Water Heater (700 – 1,000 sq. ft.)

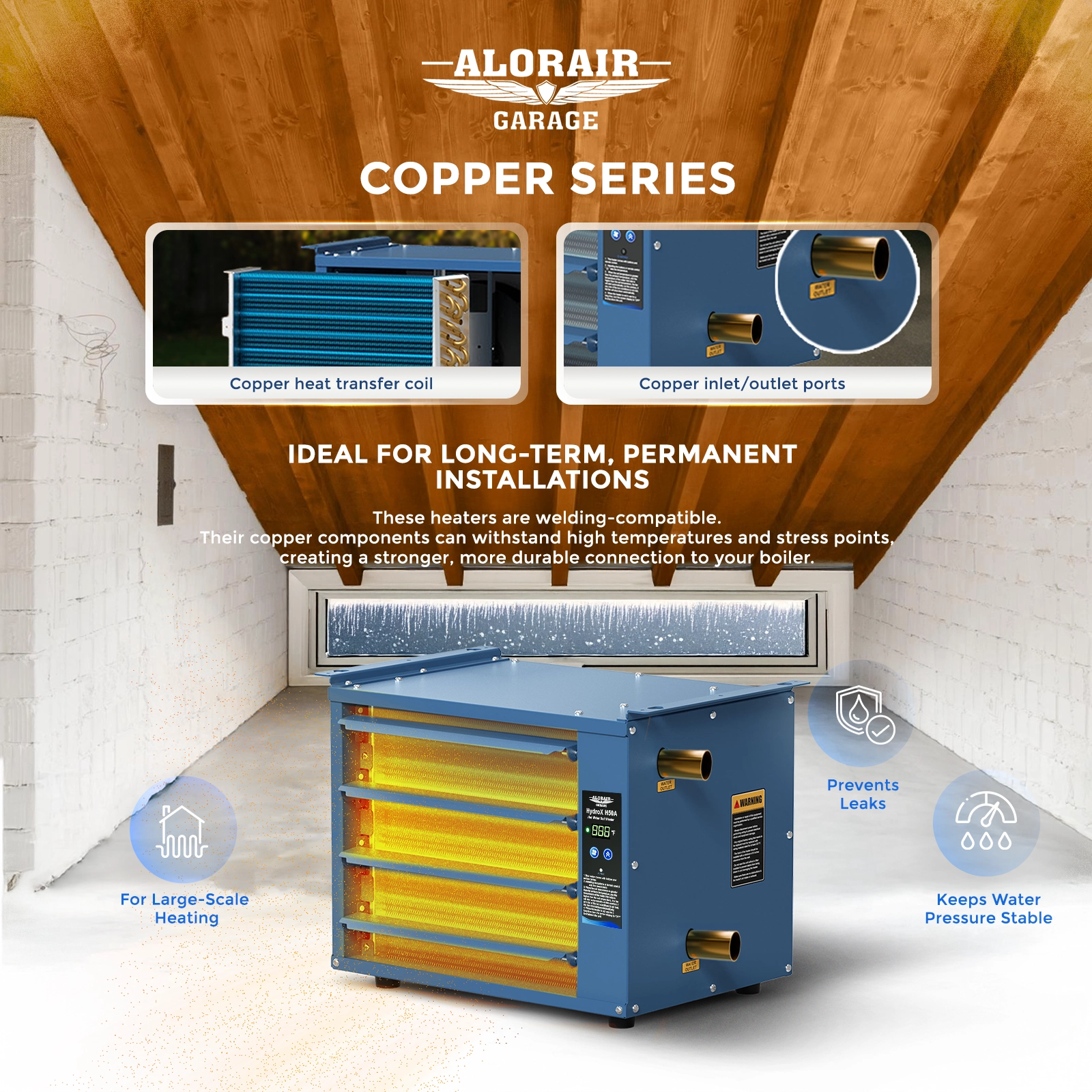

Designed for welding installations of hydronic heating systems, the H50A from our Copper Series offers provisions for strong and permanent connection with your boiler. Low maintenance, eco-friendly, and energy-efficient, it is an impressive, multi-functional heater in compact form.
Sufficient Heating for Open Floor PlansÂ

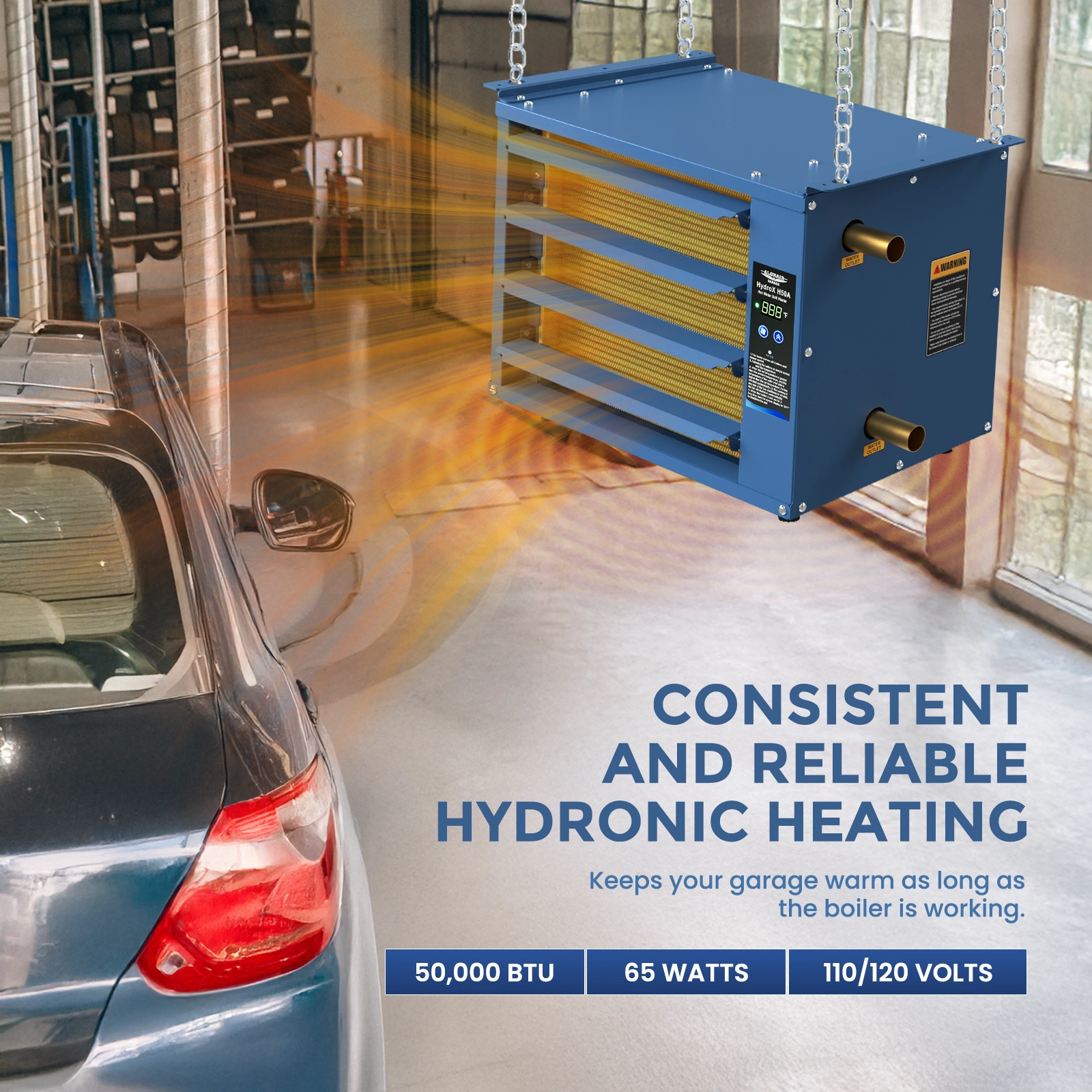

Capable of generating 50,000 BTU, the HydroX H50A can provide adequate heat for spacious garages, basements, and floors.Â

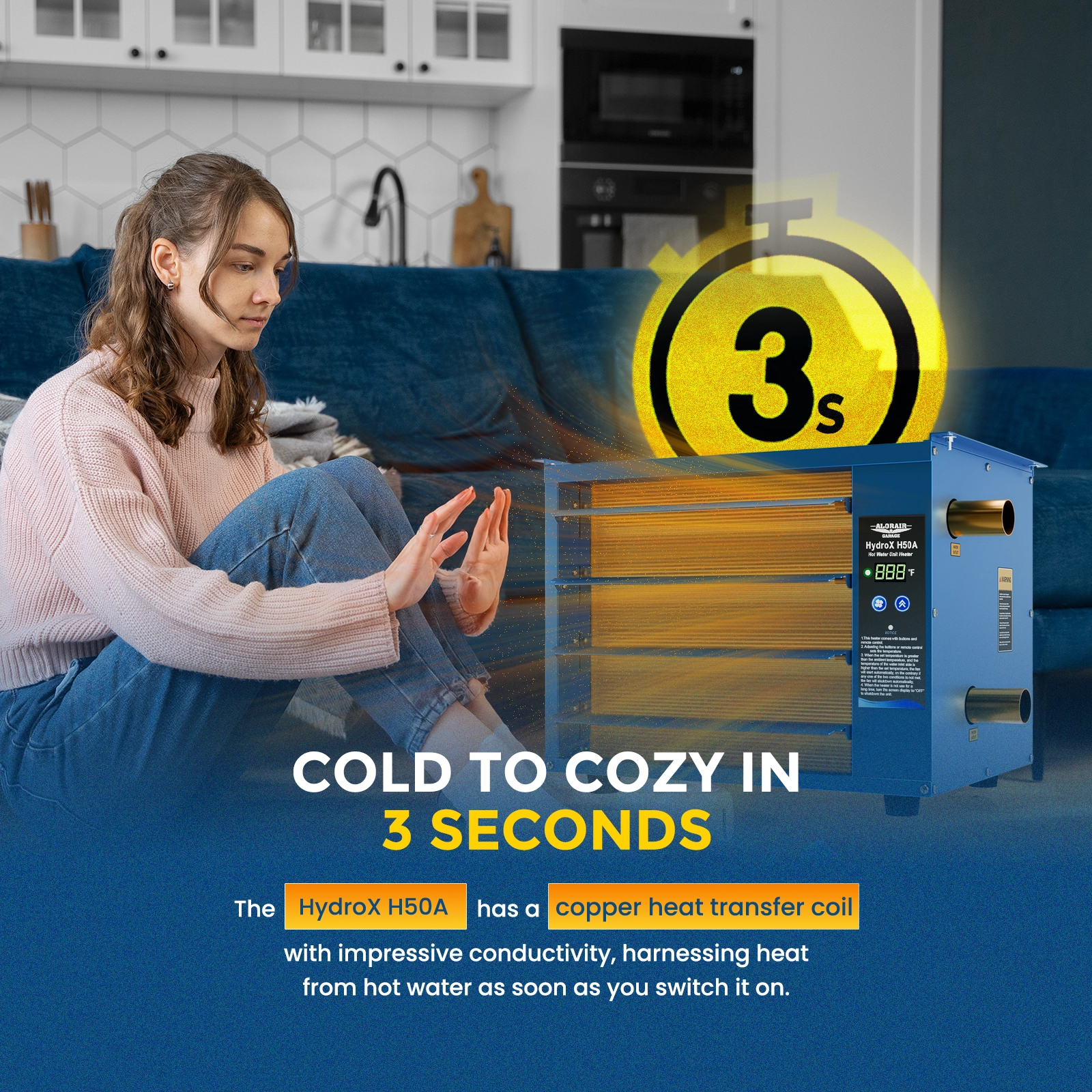

No Waiting TimeÂ
The heat transfer coil kicks in within three seconds of the heater switching on, ensuring you don’t wait in the cold too long.Â

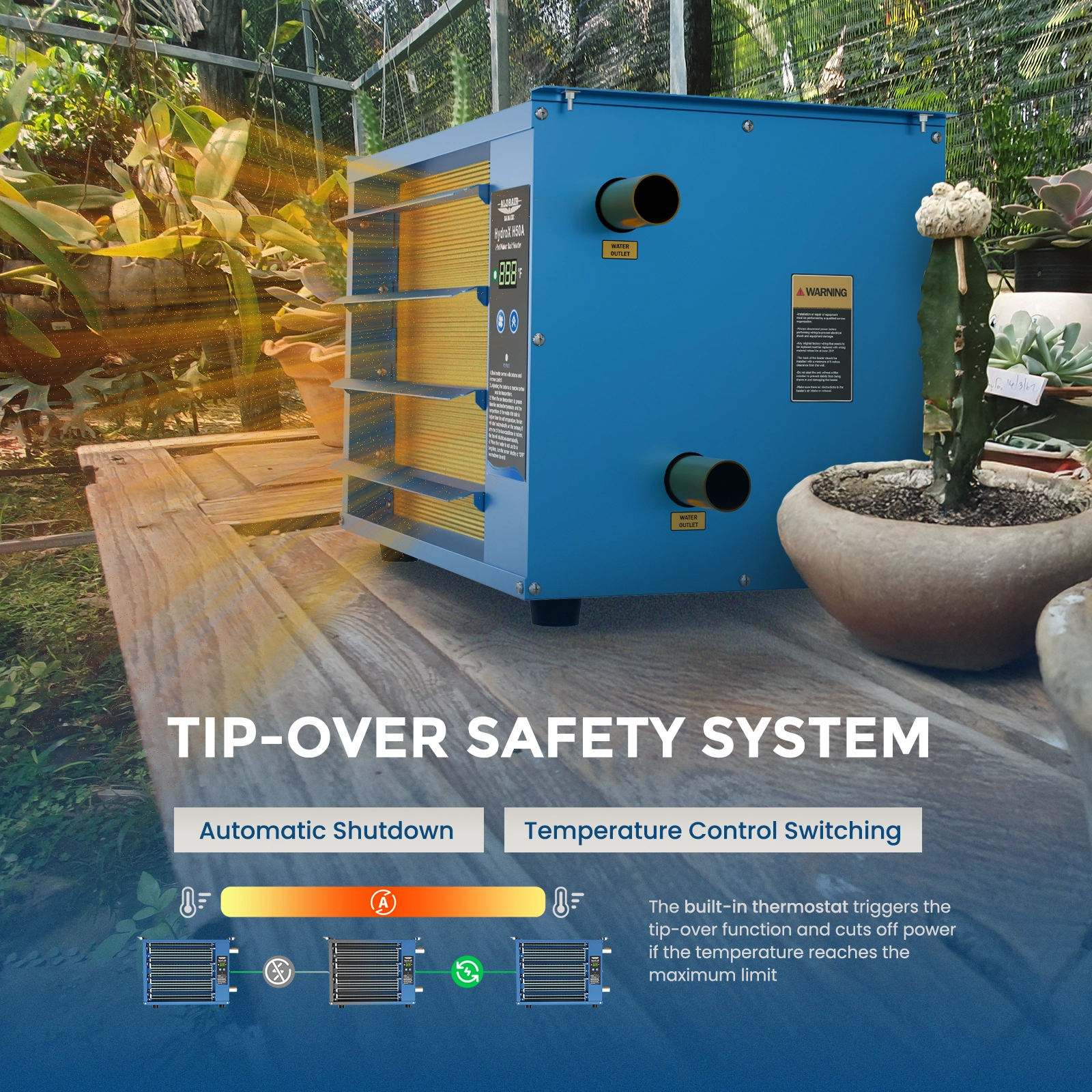

Overheating ProtectionÂ
All AlorairGarage units have built-in thermostats with automatic tip-over function. It shuts off when the ambient temperature exceeds the safety range.Â

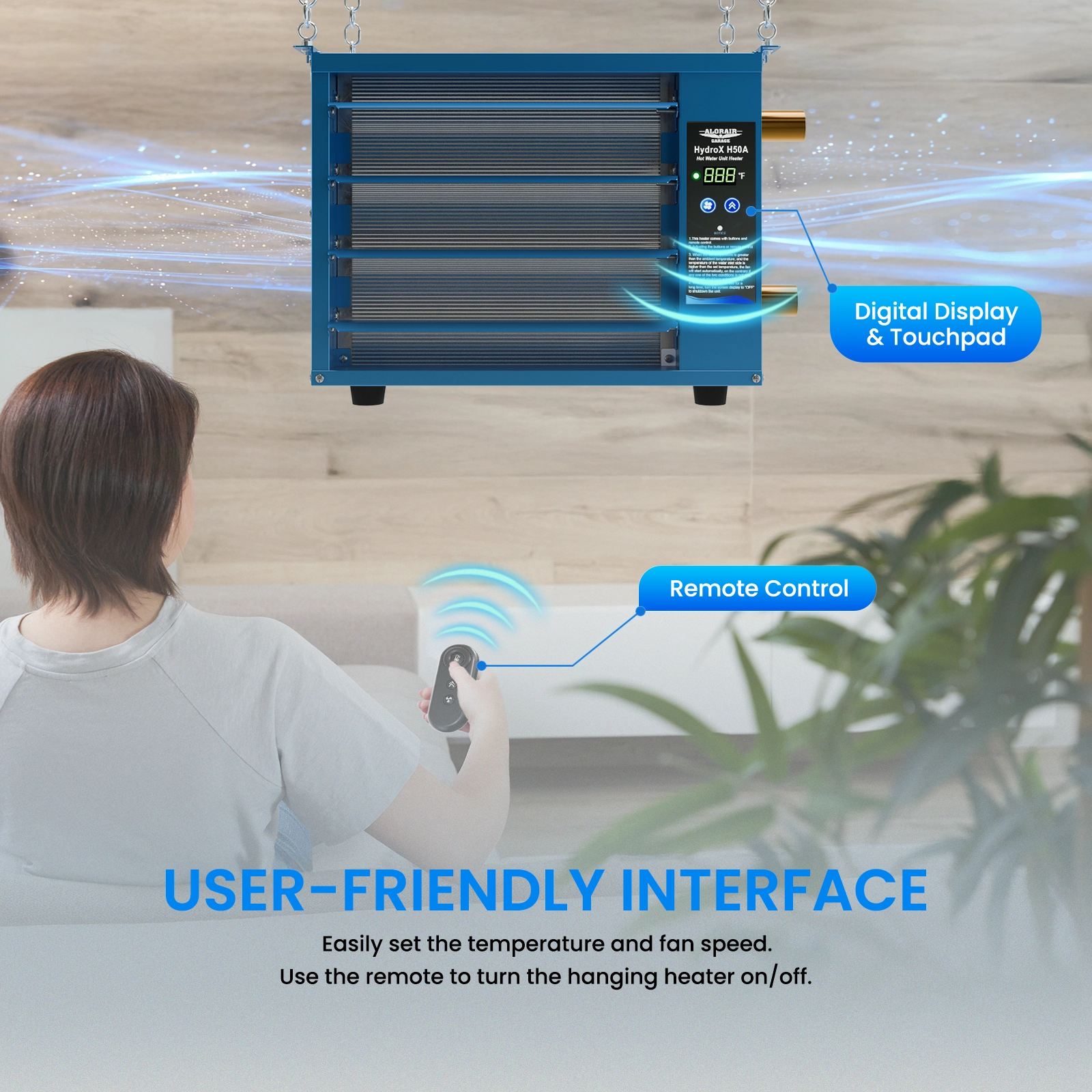

Simple Digital InterfaceÂ
The controls for AlorairGarage are designed to be beginner friendly. You can easily input your preferred temperature settings and fan speed using the touchpad or remote control.Â

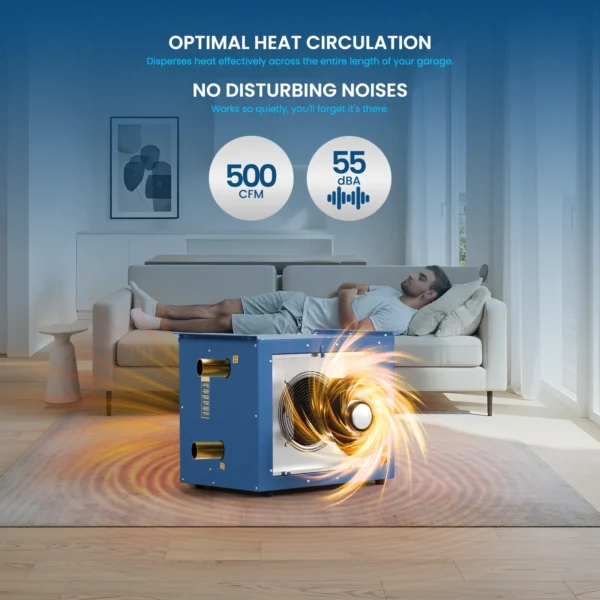

Peaceful OperationÂ
One of the best features of HydroX H50A is you’ll barely hear it. At 55 dBA, it won’t disturb you even if it’s working hard during a freezing day and the fan is at maximum 500 CFM.Â

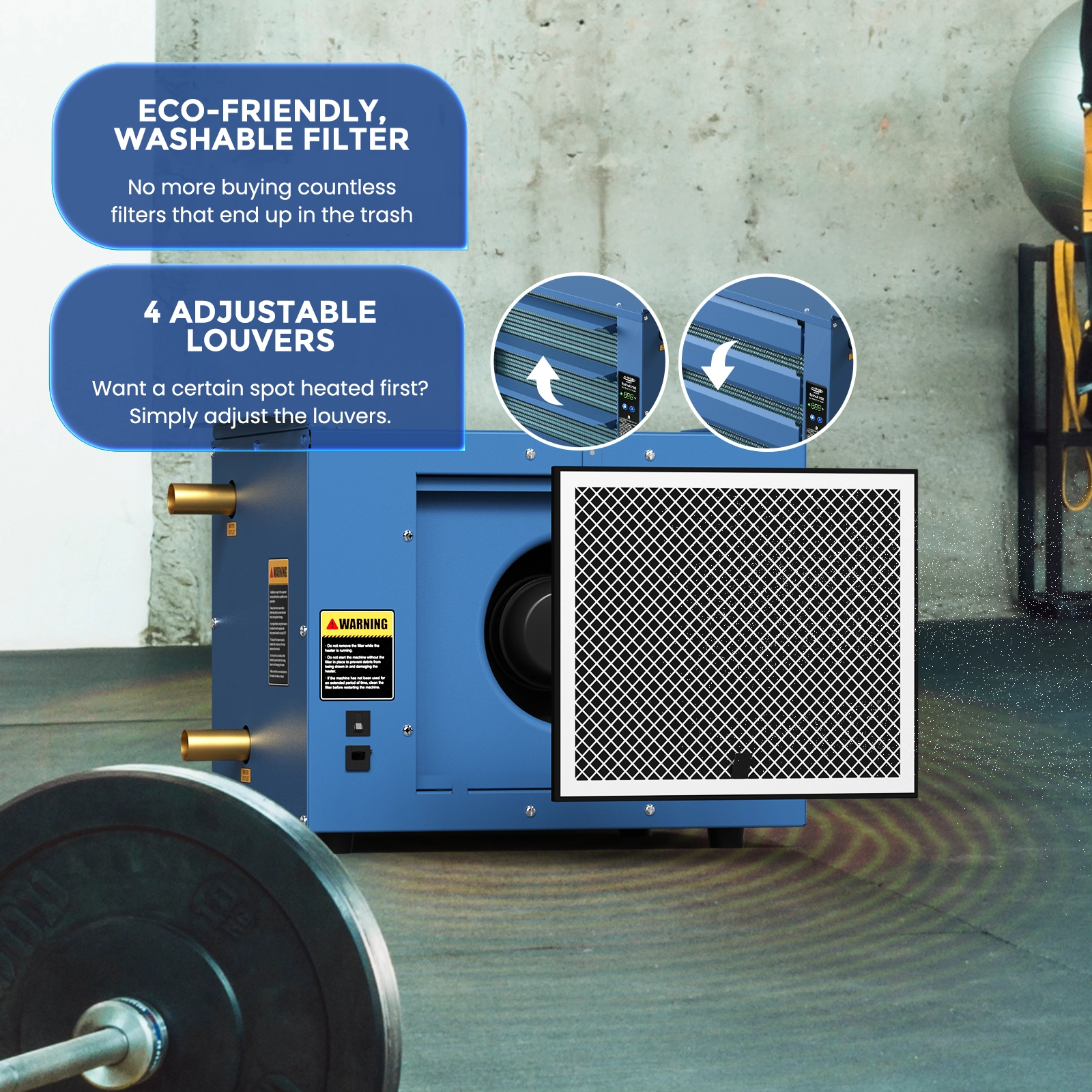

Low-Waste FilterÂ
AlorairGarage hydronic heaters have washable and reusable filters that you can use for about two months, giving you additional long-term savings.Â
Availability: In stock

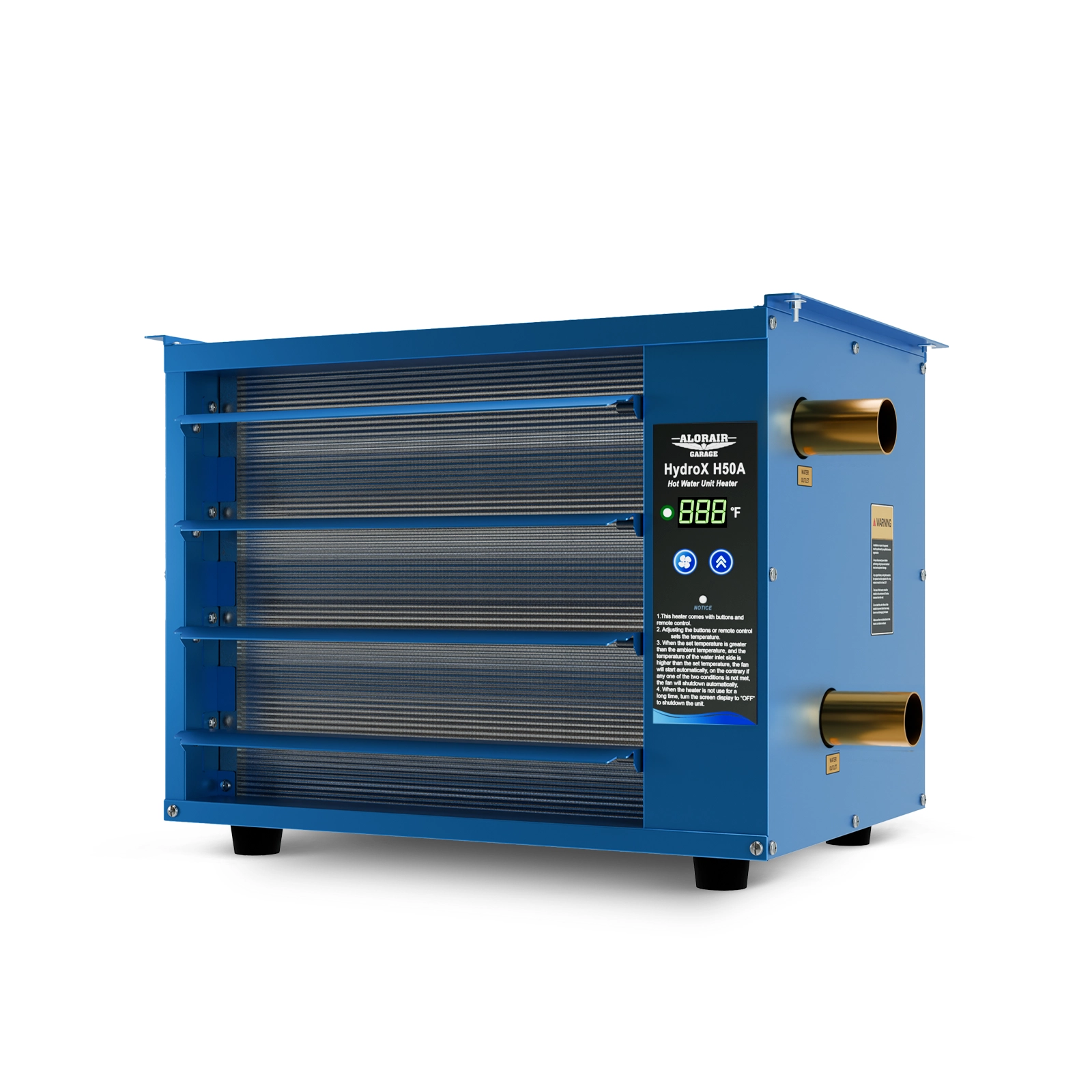

AlorairGarage HydroX H50A is a compact, hanging hydronic heater that utilizes hot water from a boiler. It has a high heat output but minimal wattage, keeping energy consumption low. This heater is ideal for spacious garages, basements, workshops, and greenhouses measuring 700-1,000 sq.ft.Â
Product Specifications
| Model | H50A |
| Mounting Style | Ceiling mounted |
| Voltage | 110 / 120 V |
| Power/Consumption | 65 W |
| Heat Output | 50,000 BTU |
| Heating Speed | 3 seconds |
| Temperature Settings | 60°F – 120°F |
| Circulation / Fan Speed | 500 CFM |
| Noise | 55 dBA |
| Coverage | 700-1,000 sq.ft. |
| Coil | ||||
|---|---|---|---|---|
| Type | Copper | |||
| Coil Size | 12 x 12 in | |||
| Operating Temperature | 32°F – 350°F | |||
| Design Pressure | 175 psi | |||
| Test Pressure | 263 psi | |||
| Dimensions | ||||
|---|---|---|---|---|
| Height | 12.1 in | |||
| Length | 16.0 in | |||
| Width | 11.4 in | |||
| Full Height (from base to mounting brackets) | 13.3 in | |||
| Inlet/outlet port inner diameter (ID) | 1 in | |||
| Weight | 13.15 kg (28.99 lbs) | |||
| Features | |
|---|---|
| Temperature Control Switch | |
| Return Air Temperature Sensor | |
| Power Outage Memory Function | |
| Insulated, Scald-Proof, Galvanized Steel Housing | |
| Adjustable Louvers (up and down): 4 deflectors | |
| Centrifugal Fan/Blower | |
| – Blower Speeds (2) | 500 / 390 CFM |
| – Rotational Speed | 1,740 RPM |
| Digital Display Control Panel Touchpad | |
| – Fan Speed Indicator Light | red (high speed) / green (low speed) |
| – Fan Speed Button | Yes |
| – Current Ambient Temperature Reading | Yes |
| – Temperature Set Button | Yes |
| – Infrared Indicator Light | Yes |
| Inclusions | ||||
|---|---|---|---|---|
| Remote Control | Yes | |||
| Reusable Filter | Yes | |||
| Power cord (110/120V) | 10 ft | |||
Here’s what you need to know about the AlorairGarage.
INCLUSIONS
Every AlorairGarage unit is securely packed and comes with the following parts or peripherals:Â
- 1 AlorairGarage electric heater unitÂ
- 1 reusable filterÂ
- 1 remote controlÂ
- 1 user manual and warranty policy bookletÂ
How to use
- Turn on the hydronic heater’s circuit breaker.Â
- Use the remote control to turn on the heater.Â
- Enter your desired temperature settings through the control panel.Â
- To turn off the heater, press the power button on the remote control.Â
Application
AlorairGarage is a powerful and versatile heater designed for garages but is also well-suited for a variety of indoor and semi-outdoor settings. Since it may be ceiling-mounted, it can also be installed in indoor spaces with busy floors, like workshops and greenhouses.
For more information on the applications of AlorairGarage HydroX H50A, check out the Applications menu.Â
Warranty
Each AlorairGarage unit is covered by a 3-Year Limited Warranty.Â
Important reminder:Â Please register your unit immediately upon receipt to ensure it is covered by our warranty policy. Failing to register within the warranty period will not extend or reactivate your warranty privileges.Â
To register, simply fill out and submit the Warranty Registration form.Â
Note: Product warranty privileges are exclusive to the unit purchased and are non-transferrable to other units or owners. For more information, please see the product warranty booklet or contact Customer Service.Â
Features
AlorairGarage integrates seamlessly with your boiler system to deliver efficient, energy-saving heating in your garage and anywhere else you need supplementary heating.
Bring it home today.
Availability: In stock
Applications
AlorairGarage offers great value for your money with multiple applications.
GarageÂ
Hydronic heating reduces humidity and moisture in your shed, maintaining a dry environment that protects your tools, mowers, tractors, and other equipment from rust.Â
Workshop
The ceiling-mounted AlorairGarage is the best garage heater for a workshop. It stays out of the way, letting you use every square footage in your workshop garage.Â
Home Gym
Working out in the cold isn’t comfortable or ideal when you need to warm up your muscles for certain exercises. Our hydronic garage heater can solve this problem.Â
Greenhouse
Let plants blossom beautifully and flourish all year with consistent heating. AlorairGarage uses heat energy from your boiler, extending heating from your home to the greenhouse.Â
Basement
Whether you use your basement for storage or extended living space, reliable hydronic heating ensures your comfort and protects your belongings from mold and mildew.Â
Storage
Condensation and humidity are big problems in storage. You can solve them and prevent mold and rodent infestation with our efficient hydronic heater.Â
Warehouse
Keep inventory in good condition and ensure a comfortable working environment for warehouse staff. Hydronic heating is a cost-efficient solution suited to warehouses.Â
CommercialÂ
Proper heating in winter attracts customers and helps drive sales. The energy-saving hydronic heater for garage keeps you warm without saddling your business with high electricity bills.Â
