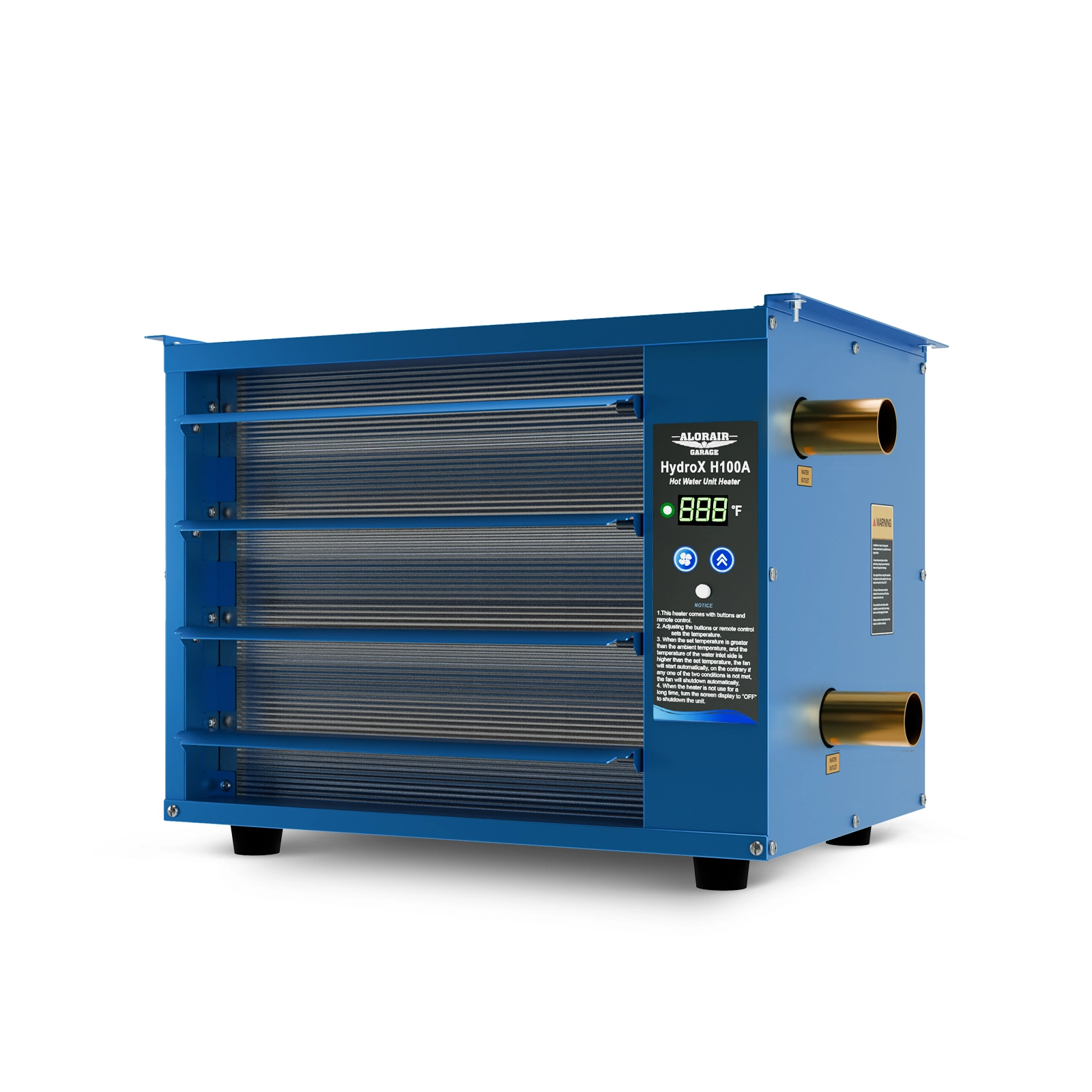

AlorairGarage HydroX H100A Copper Hydronic Heating Unit
$399.00
Model: H100A
Specs: 80 W | 110/120 V | 100,000 BTU

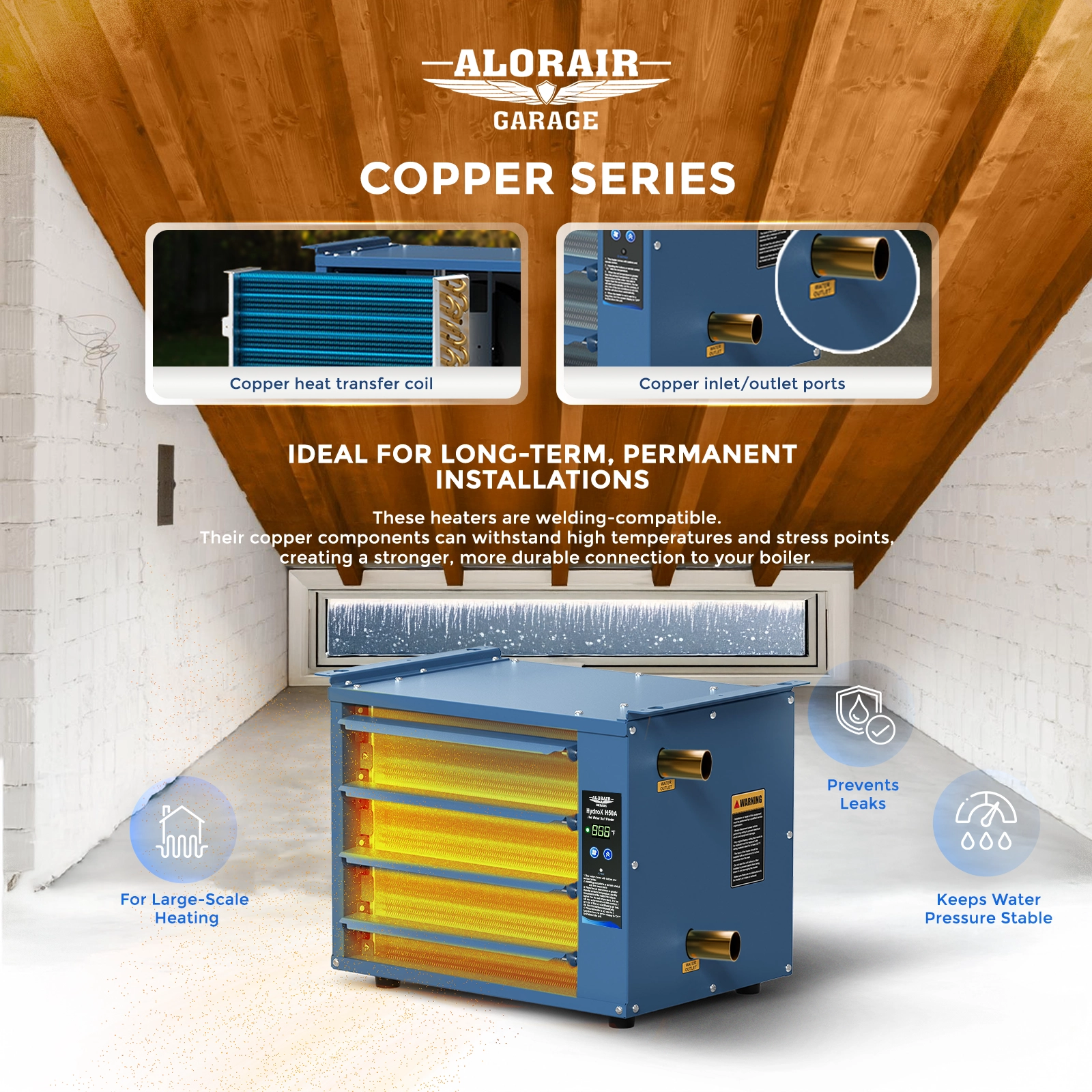

Durable, Copper Hot Water Heater for Long-Term Heating Systems (1,800-3,000 sq.ft.)
Top-notch performance and reliability packed in a powerful heater. The H100A from our copper series is the best choice for large-scale, welded heating systems. Eco-friendly and sustainable, it offers excellent value for its price range.
High-Performance HeaterÂ

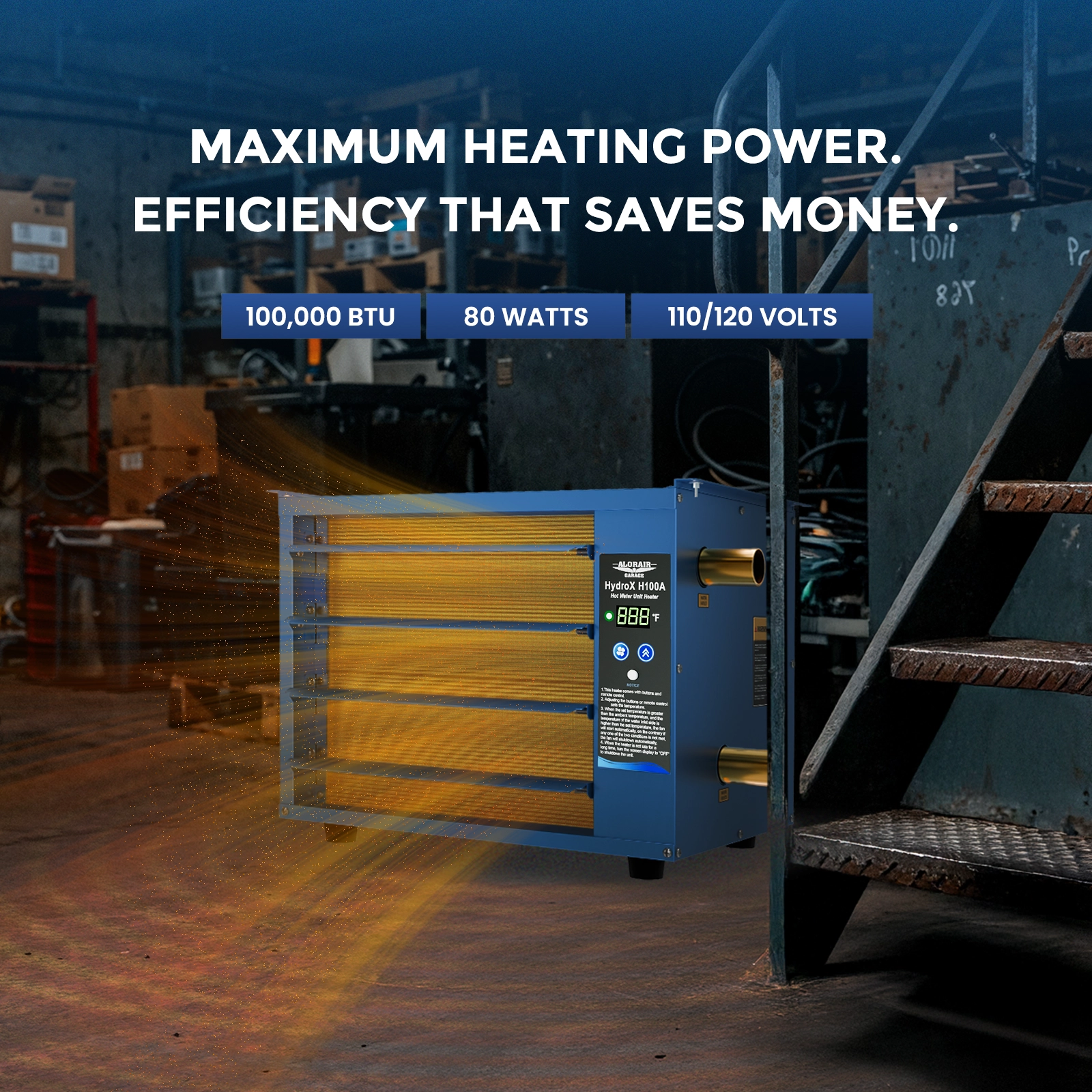

AlorairGarage HydroX H100A is power personified. Generating up to 100,000 BTU, it is one of the most impressive, energy-efficient hydronic heaters today.

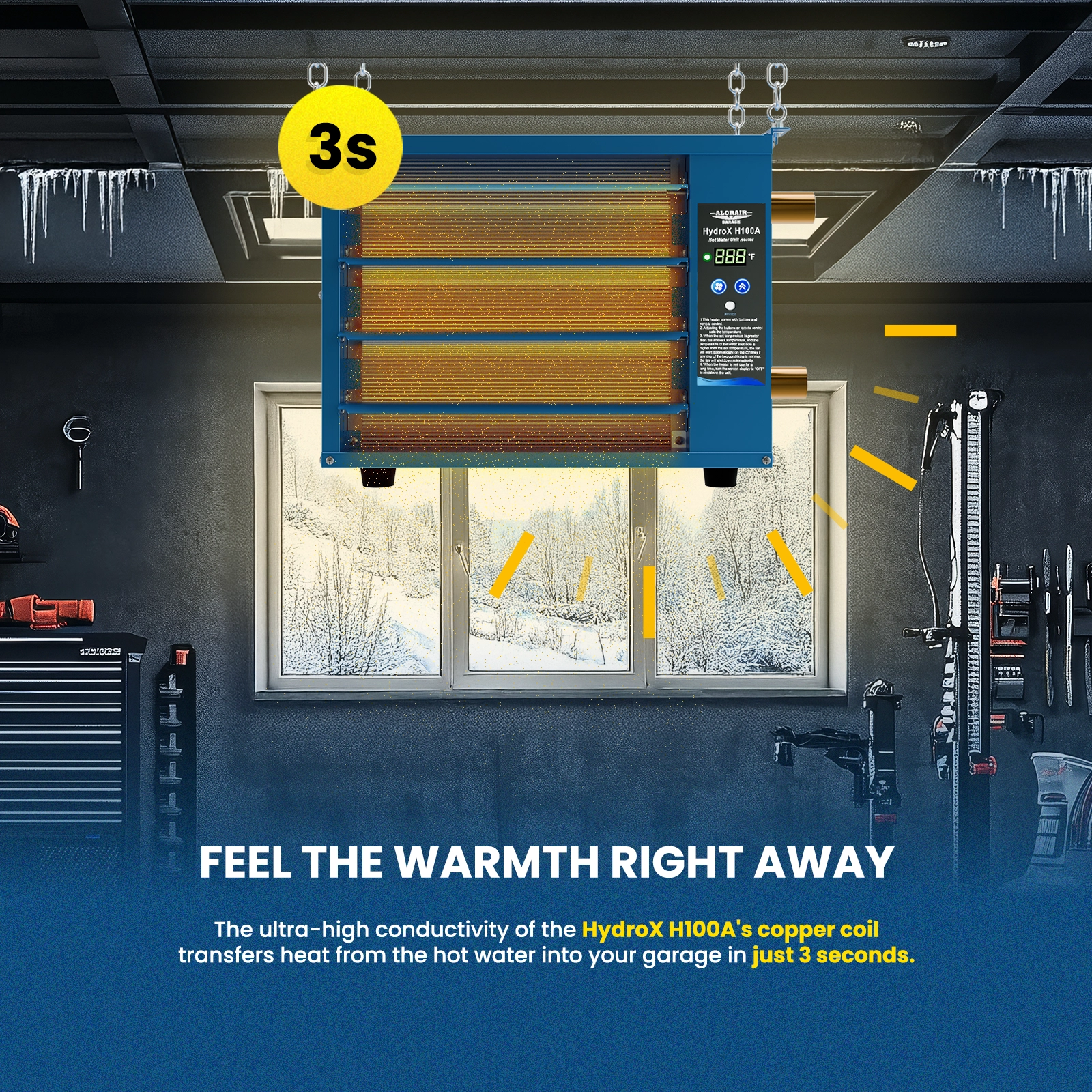

Heat You Can Immediately Feel
Boasting a 3-second heating speed, the HydroX H100A won’t take too long to warm up a large space.

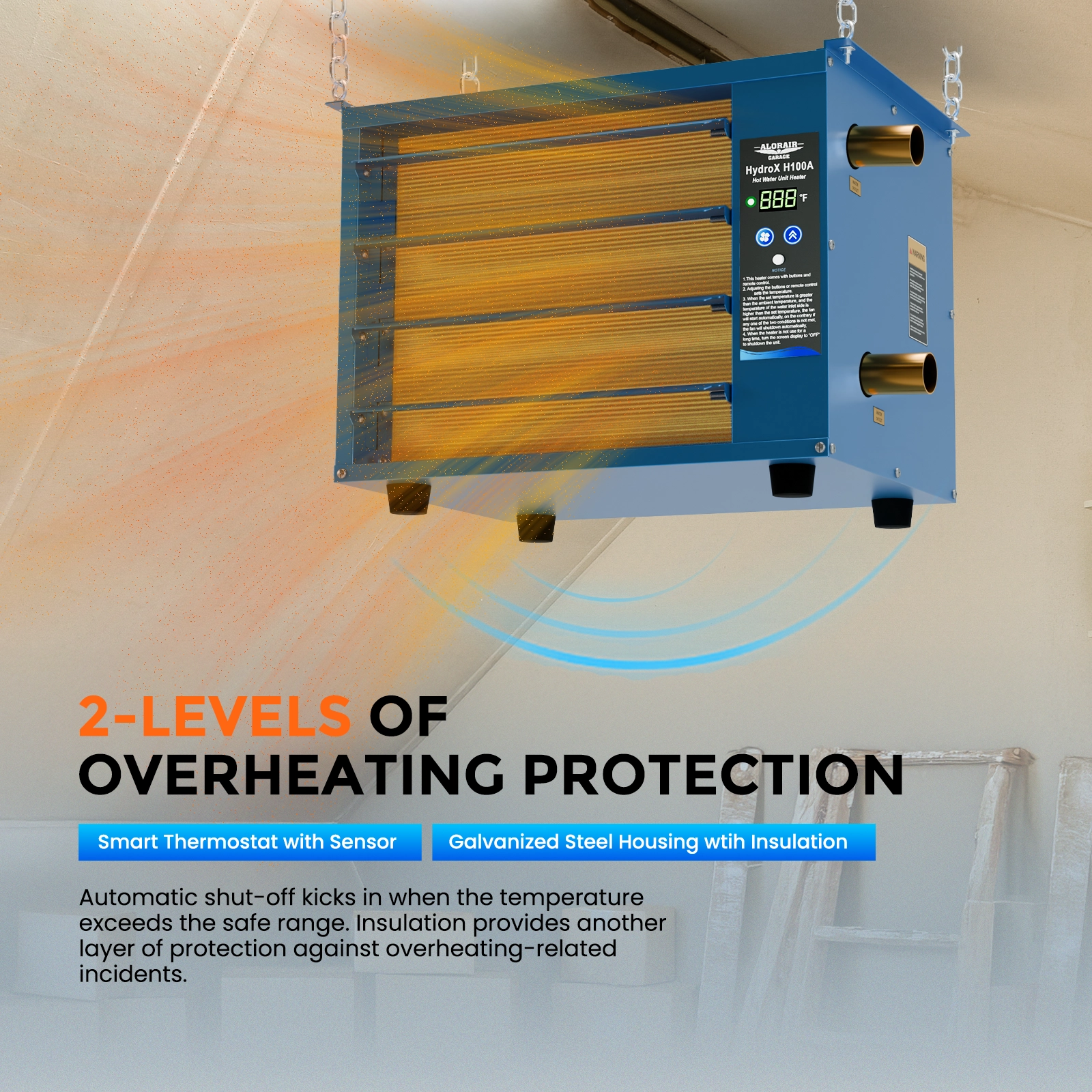

Built-In, Smart Thermostat
Overheating isn’t a problem with AlorairGarage’s smart thermostat. The heater will automatically shut down if the temperature exceeds the maximum safety range, preventing accidental fires or fried electrical components.

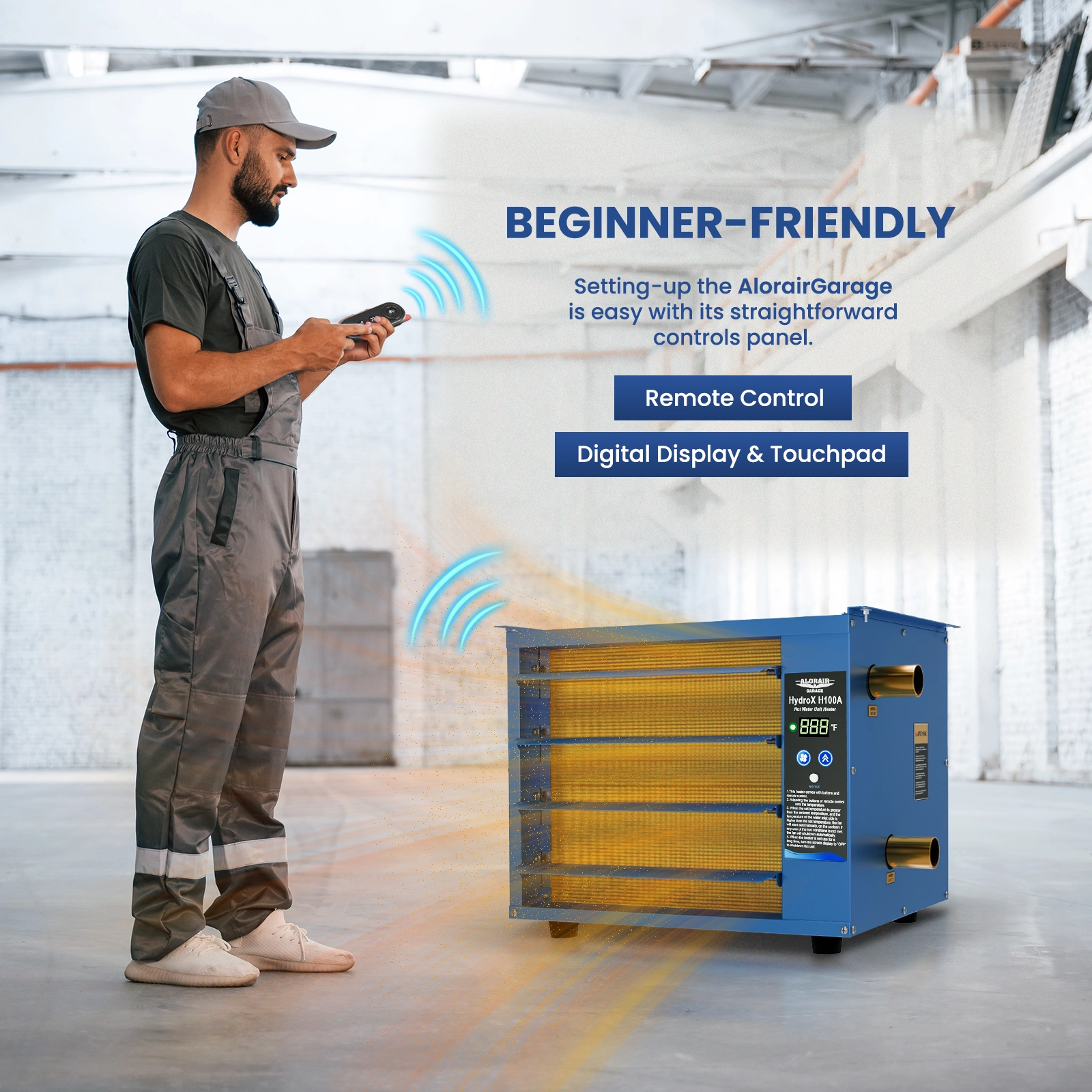

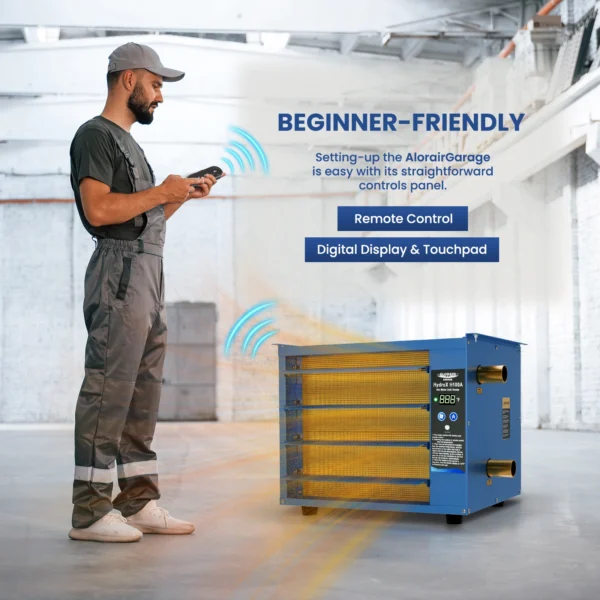

Just Press “On” and Go
Navigating the controls for AlorairGarage is a breeze! Simply enter your desired temperature, set the fan speed, and you’re done. If you need to adjust the settings after mounting the hydronic heater, you can do so with the remote control.

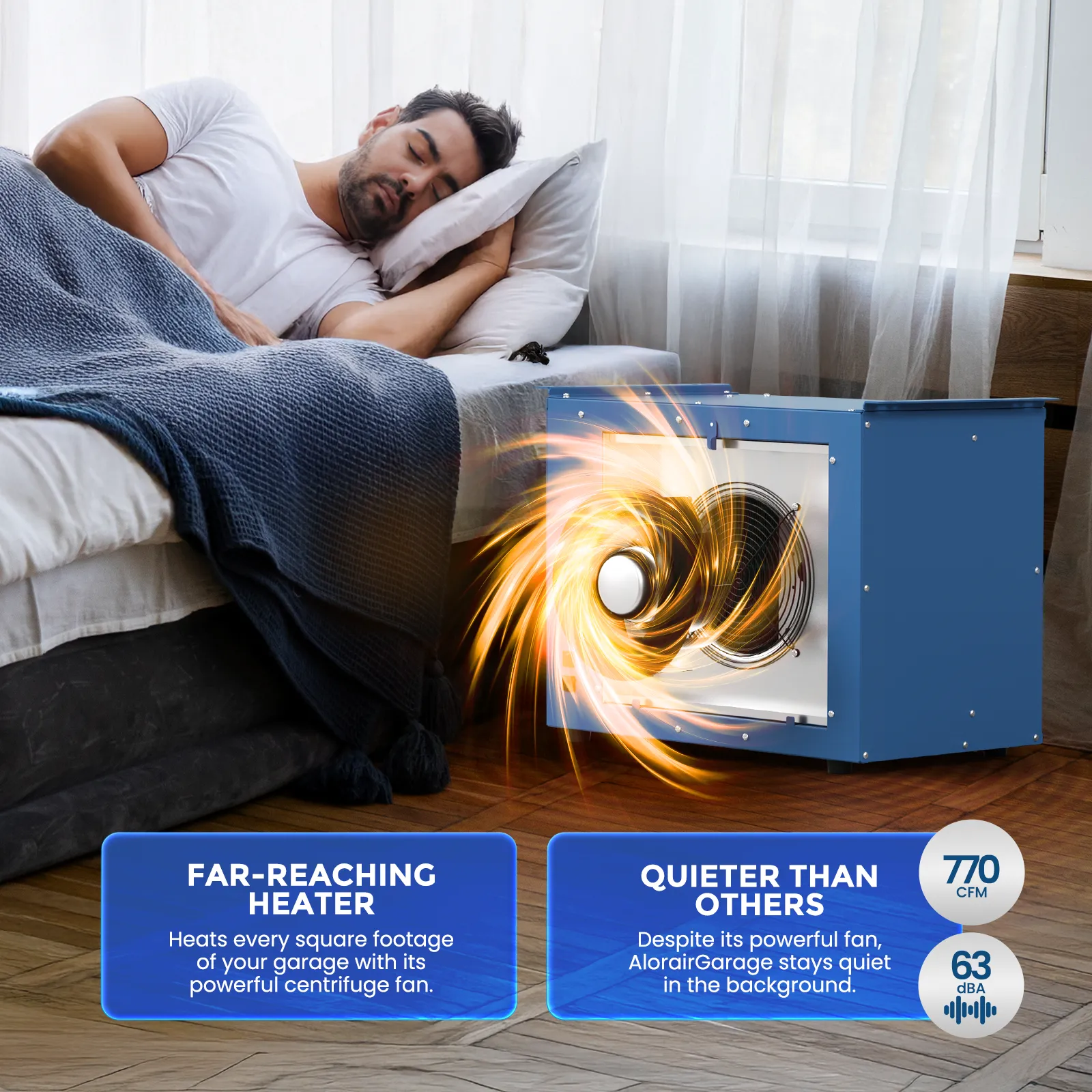

No Disturbing Noises Â
Despite its incredible heating power and 1,000 CFM fan speed, the HydroX H100A stays impressively quiet at only 63 dBA.Â

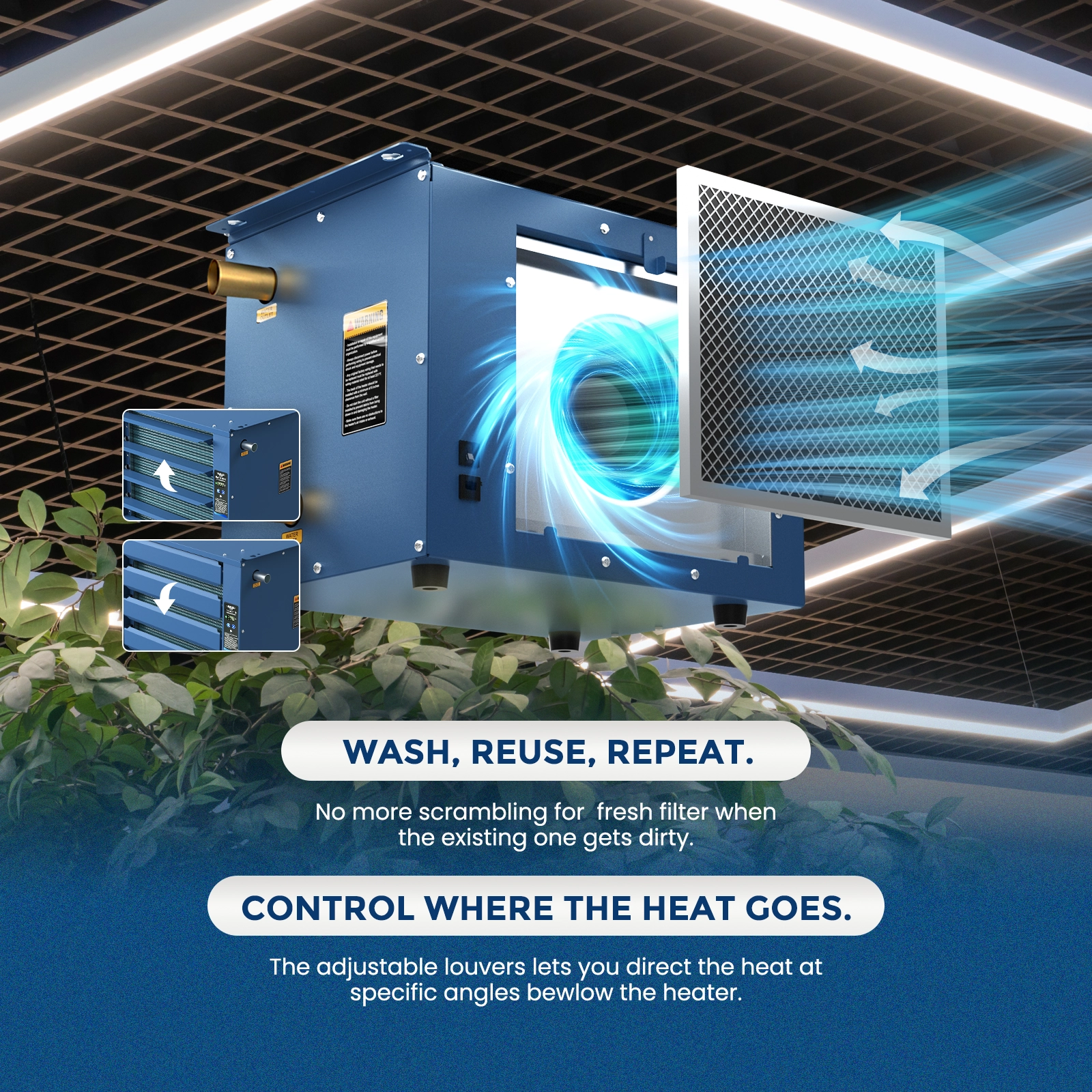

Eco-Friendly Filter
All our hydronic heaters have washable filters that can be reused after drying. Replace it every two months or when worn out to ensure your AlorairGarage heats your space consistently well.
Availability: In stock
AlorairGarage HydroX H100/H100A is a powerful, hanging hydronic heater designed for heating large, open spaces by harnessing heat from an existing boiler. Its applications include warehouses, large garages, greenhouses, basements, and commercial buildings up to 3,000 sq.ft.
Product Specifications
| Model | H100A |
| Mounting Style | Ceiling mounted |
| Voltage | 110 / 120V |
| Power/Consumption | 80 W |
| Heat Output | 100,000 BTU |
| Heating Speed | 3 seconds |
| Temperature Settings | 60°F – 120°F |
| Circulation / Fan Speed | 1000 CFM |
| Noise | 63 dBA |
| Coverage | 1,800-3,000 sq.ft. |
| Coil | ||||
|---|---|---|---|---|
| Type | Copper | |||
| Coil Size | 16 x 16 in | |||
| Operating Temperature | 32°F – 350°F | |||
| Design Pressure | 175 psi | |||
| Test Pressure | 263 psi | |||
| Dimensions | ||||
|---|---|---|---|---|
| Height | 16.1 in | |||
| Length | 20.0 in | |||
| Width | 13.5 in | |||
| Full Height (from base to mounting brackets) | 17.2 in | |||
| Inlet/outlet port inner diameter (ID) | 1 in | |||
| Weight | 19 kg (41.89 lbs) | |||
| Features | |
|---|---|
| Temperature Control Switch | |
| Return Air Temperature Sensor | |
| Power Outage Memory Function | |
| Insulated, Scald-Proof, Galvanized Steel Housing | |
| Adjustable Louvers (up and down): 4 deflectors | |
| Centrifugal Fan/Blower | |
| – Blower Speeds (2) | 770 / 480 CFM |
| – Rotational Speed | 1,530 RPM |
| Digital Display Control Panel Touchpad | |
| – Fan Speed Indicator Light | red (high speed) / green (low speed) |
| – Fan Speed Button | Yes |
| – Current Ambient Temperature Reading | Yes |
| – Temperature Set Button | Yes |
| – Infrared Indicator Light | Yes |
| Inclusions | ||||
|---|---|---|---|---|
| Remote Control | Yes | |||
| Reusable Filter | Yes | |||
| Power cord (110/120V) | 10 ft | |||
Here’s what you need to know about the AlorairGarage.
INCLUSIONS
Every AlorairGarage unit is securely packed and comes with the following parts or peripherals:Â
- 1 AlorairGarage electric heater unitÂ
- 1 reusable filterÂ
- 1 remote controlÂ
- 1 user manual and warranty policy bookletÂ
How to use
- Turn on the hydronic heater’s circuit breaker.Â
- Use the remote control to turn on the heater.Â
- Enter your desired temperature settings through the control panel.Â
- To turn off the heater, press the power button on the remote control.Â
Application
AlorairGarage is a powerful and versatile heater designed for garages but is also well-suited for a variety of indoor and semi-outdoor settings. Since it may be ceiling-mounted, it can also be installed in indoor spaces with busy floors, like workshops and greenhouses.
For more information on the applications of AlorairGarage HydroX H100A, check out the Applications menu.

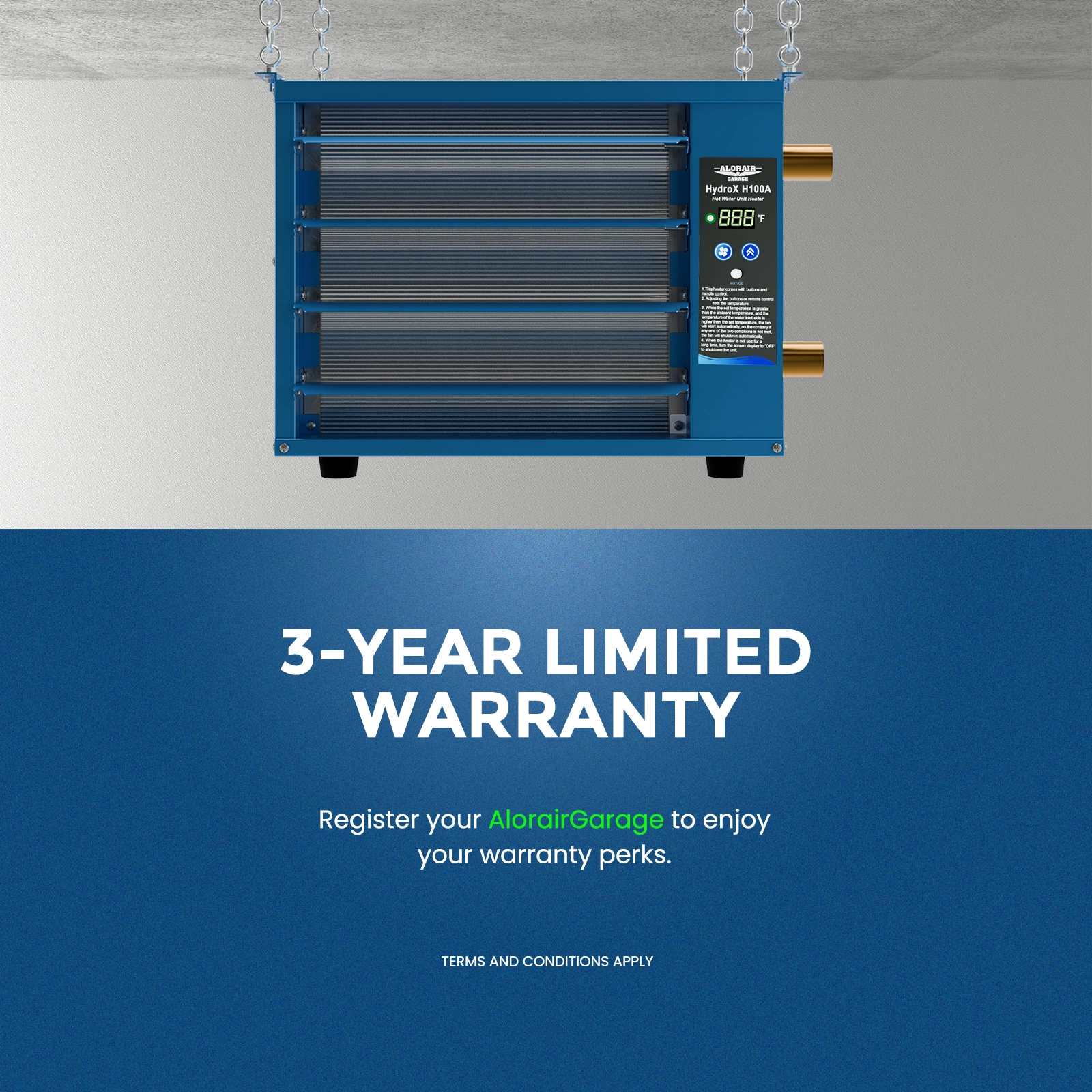

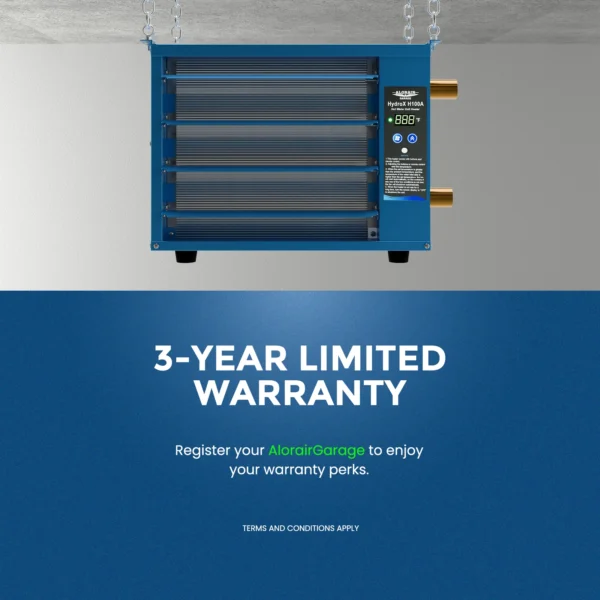

Warranty
Each AlorairGarage unit is covered by a 3-Year Limited Warranty.
Important reminder: Please register your unit immediately upon receipt to ensure it is covered by our warranty policy. Failing to register within the warranty period will not extend or reactivate your warranty privileges.Â
To register, simply fill out and submit the Warranty Registration form.Â
Note: Product warranty privileges are exclusive to the unit purchased and are non-transferrable to other units or owners. For more information, please see the product warranty booklet or contact Customer Service.Â
Features
AlorairGarage integrates seamlessly with your boiler system to deliver efficient, energy-saving heating in your garage and anywhere else you need supplementary heating.
Bring it home today.
Availability: In stock
Applications
AlorairGarage offers great value for your money with multiple applications.
GarageÂ
Hydronic heating reduces humidity and moisture in your shed, maintaining a dry environment that protects your tools, mowers, tractors, and other equipment from rust.Â
Workshop
The ceiling-mounted AlorairGarage is the best garage heater for a workshop. It stays out of the way, letting you use every square footage in your workshop garage.Â
Home Gym
Working out in the cold isn’t comfortable or ideal when you need to warm up your muscles for certain exercises. Our hydronic garage heater can solve this problem.Â
Greenhouse
Let plants blossom beautifully and flourish all year with consistent heating. AlorairGarage uses heat energy from your boiler, extending heating from your home to the greenhouse.Â
Basement
Whether you use your basement for storage or extended living space, reliable hydronic heating ensures your comfort and protects your belongings from mold and mildew.Â
Storage
Condensation and humidity are big problems in storage. You can solve them and prevent mold and rodent infestation with our efficient hydronic heater.Â
Warehouse
Keep inventory in good condition and ensure a comfortable working environment for warehouse staff. Hydronic heating is a cost-efficient solution suited to warehouses.Â
CommercialÂ
Proper heating in winter attracts customers and helps drive sales. The energy-saving hydronic heater for garage keeps you warm without saddling your business with high electricity bills.Â
